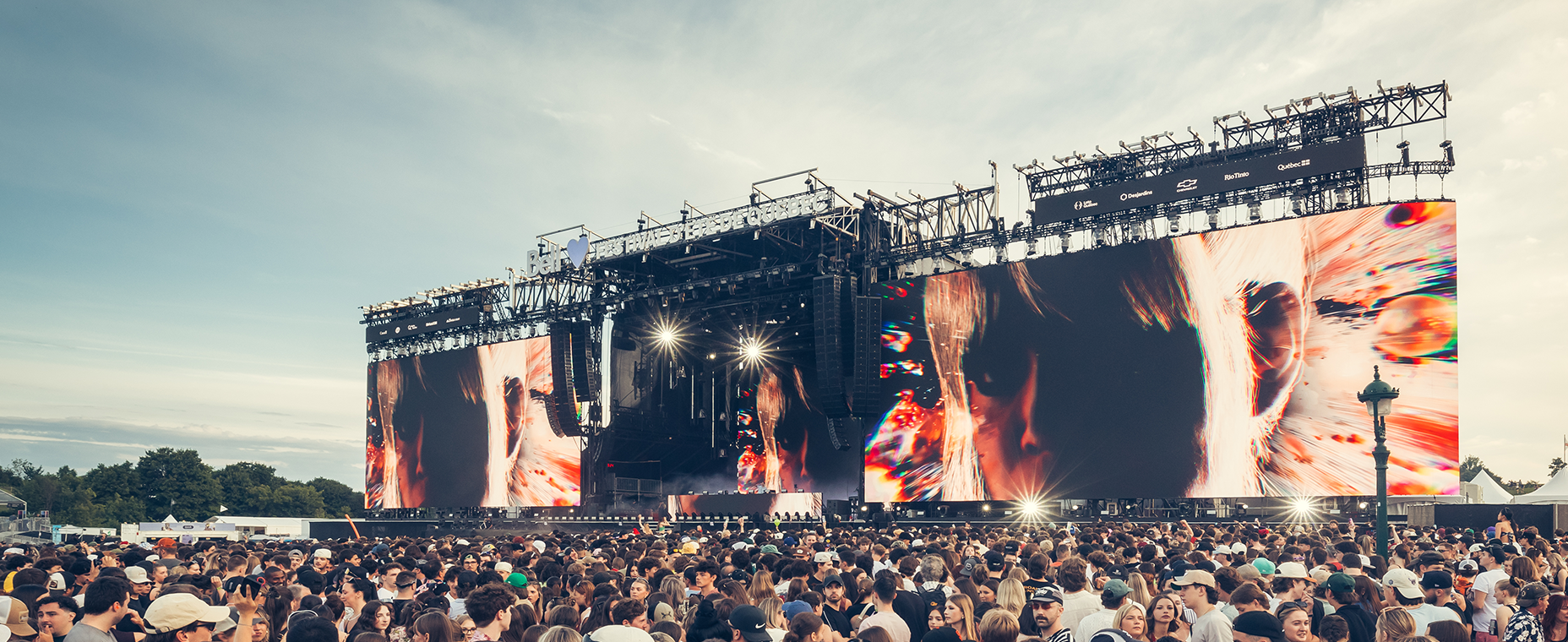

Introducing Stageline’s all new hydraulic LED screen support: the HyRig expands the possibilities. Streamline your events with unmatched wind resistance, simplified high wind protocols and fast setups. Elevate your stage design with flexible integration options, incorporating screens, sound, and other set elements. The HyRig works harmoniously with SAM Series stages or as a powerful standalone staging solution.
Introducing Stageline’s all new hydraulic LED screen support: the HyRig expands the possibilities. Streamline your events with unmatched wind resistance, simplified high wind protocols and fast setups. Elevate your stage design with flexible integration options, incorporating screens, sound, and other set elements. The HyRig works harmoniously with SAM Series stages or as a powerful standalone staging solution.
| Screens |  30' in width and 57' in height per unit. |
| Tower Set-up |  x4  4H00 |
| Structure Height | 82' from the ground with PA Support | 69' without PA Support. |
| Wind resistance | 77 mph with screens installed. |
| Rigging Capacity | Total capacity: 30,000 lb | PA: 6,600 lb| Sidefills: 3,300 lb |
| Others | - Compatible with SAM Series stages - Multiply the number of HYRIGs to increase your LED screen size in increments of 30'. - Simplified leveling with hydraulic stabilizers. |
| Screens |  9m in width and 17m in height per unit that can be connected to our SAM stages. |
| Tower Set-up |  x4  4H00 |
| Structure Height | 25m from the ground with PA Support | 21m without PA Support. |
| Wind resistance | 125 km/h with screens installed. |
| Rigging Capacity | Total capacity: 13 600 kg | PA: 2 993 kg|Sidefills: 1 496 kg |
| Others | - Compatible with SAM Series stages - Multiply the number of HYRIGs to increase your LED screen size in increments of 9m. - Simplified leveling with hydraulic stabilizers. |
| Floor |  44’ x 38’ | 76’ x 38’ with covered wings |
| Stage Set-up |  x 4  4H00 depending on options & configurations |
| Wind resistance | 115 mph without windwalls | 77 mph with windwalls |
| Rigging |  66,000 lbs |
| PA sound rigging points | 3,000 lb per side |
| Covered wings option | Modular 16’ x 16’ up to 16’ x 32’’ per side |
| LED Screen Rigging | Lateral screen: 20' x 27' (10,000 lb Capacity) | Upstage screen: 40' x 20' (8,000 lb Capacity) LED Header screen: 4,000 lb Capacity |
| Trim height | 27' |
| Floor |  13.4m x 11.7m | 23.2m x 11.7m with covered wings |
| Stage Set-up |  x 4  4H00 depending on options & configurations |
| Wind resistance | 185 km/h without windwalls | 123 km/h with windwalls |
| Rigging |  29,937 kg |
| PA sound rigging points | 1,360 kg per side |
| Covered wings option | Modular 4,8 m x 4,8 mup to 4,8 m x 9,6 m per side |
| LED Screen Rigging | Lateral screen: 6 m x 8,2 m (4,535 kg Capacity) | Upstage screen: 12 m x 6 m (3,628 kg Capacity) LED Header screen: 1,814 kg Capacity |
| Trim Height | 8 m |
| Floor |  50’ x 38’ up to 90’ x 56’ with wings & backstage |
| Stage Set-up |  x 6-12  6-12 H depending on options & configurations |
| Wind resistance | 115 mph without windwalls | 77 mph with windwalls |
| Rigging |  94,000 lb |
| Crossover & Loading Dock | 76’ x 12’ - Quickly installed, customizable & simple to connect to any loading dock. |
| Covered wings option | 20’ x 40’ each covered on 32' |
| LED Screen Rigging | Lateral screen: 22' x 31' (12,000 lb Capacity) | Upstage screen: 48' x 24' (10,000 lb Capacity) Optional Header screen: 5,000 lb Capacity |
| Trim Height | 33' |
| Floor |  15.2 m x 11.6 m up to 27.4 m x 17.1 m with wings & backstage |
| Stage Set-up |  x 6-12  6-12 Hdepending on options & configurations |
| Wind resistance | 185 km/h without windwalls | 123 km/h with windwalls |
| Rigging |  42,637 kg |
| Crossover & Loading Dock | 23 m x 3,6 m - Quickly installed, customizable & simple to connect to any loading dock. |
| Covered wings option | 6,1 m x 12 m each covered on 9,8 m |
| LED Screen Rigging | Lateral screen: 6,4 m x 9,4 m (5,443 kg Capacity) | Upstage screen: 18 m x 12,2 m (9,071 kg Capacity) Optional Header screen: 2,268 kg Capacity |
| Trim Height | 10 m |
